Jacketed flooded centrifuge for closed loop alcohol extraction system
Product Description
The PPTD centrifuge is top discharging, hermetic closure type equipment.
The dry material dip in ethanol, and then use centrifuge for dewatering. The working temperature is very low, around -30~-80 C, to prevent the ethanol from volatilization.
Model PPTD flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Applications:
It is applicable to the filtrating of suspension containing granules and also be used for the dehydration of fiber substances and especially applicable to the filtrating of materials of high viscosity and fine granules as well as toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. for example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.

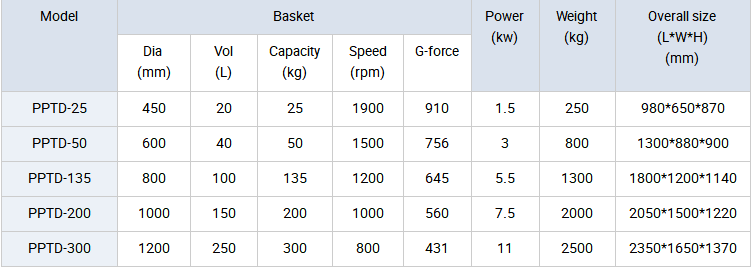

Technical Parameters:
Estimated capacity for dry ground plant
| Model | Capacity for dry ground plant(per batch) |
| PPTD-25 | ~8kgs |
| PPTD-50 | ~15kgs |
| PPTD-135 | ~30kgs |
| PPTD-200 | ~45kgs |
| PPTD-300 | ~60kgs |
Standard features
·304 and 316L Sanitary Stainless Steel Construction
·Low temperature rating: -40c
·Reinforced Sight Glass
·Bi-Directional Agitation
·Auto/Manual Controls
·Digital HMI Interface
·Variable Speed Control
·Easy Material Loading/ Unloading
·Heavy-Duty Spin Drying
·No foundation required
Detailed Images
The whole extraction system is coming ~
Our Service
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
Waiting for your kindly requirement!
