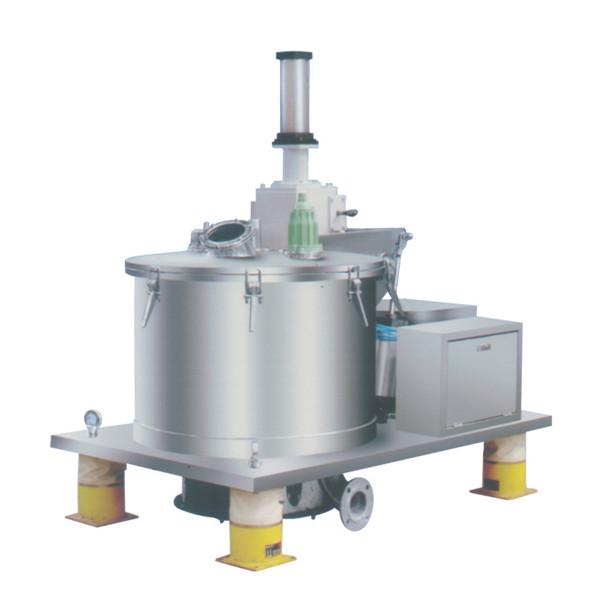

Platform Sealing Overall Reversible Shell Industrial Centrifuge Machine
Intruduction
Platform Sealing Overall Reversible Shell Industrial Centrifuge Machine,this is the type of centrifuges which is suitable to high cleaning production,healthy filteration, now it can be widely used in separation of solid-liquid mixtures in pharmacy,food,fine chemical filed etc. In addition,it has an advantage of best technologies,strong anti-erosion,stable work,and can reach the high standard sanitation .
Technical Parameter
| Model | PPTD-450-S | PPTD-600-S | PPTD-800-S | PPTD-1000-S | PPTD-1200-S | PPTD-1250-S |
| Maximum capacity(Kg) | 30 | 68 | 135 | 200 | 300 | 400 |
| Speed(r/min) | 2000 | 1600 | 1200/1500 | 1080/1200 | 950 | 1000 |
| Motor power(Kw) | 3 | 3 | 5.5/7.5 | 11 | 15 | 18.5 |
| Size(LxWxH)(mm) | 1460x920x1120 | 1800x1200x1030 | 2000x1400x1085 | 2650x1600x1375 | 2900x1900x1500 | 2900x1900x1505 |
| Weight(Kg) | 750 | 1500 | 2300 | 3200 | 4800 | 5300 |
Main Characteristics
1.The parts contacted with material are all stainless steel,with good erosion-proof quality
2.The surface of the main accessaries of equipments are polished accurately, there is no angel in inner structure,which can clean easily
3.The shell cover can be turned over more than 90 the drum can be exposed wholely, the bottom of drum can be touched,which can make cleaning and exchange filter cloth conveniently
4.Sealed belt lid,motor lid, changing nozzle of setting gas are adopted by the parts of transmission which can avoid powder pollution rising from belts rubbing.
Product Description
Industrial centrifuge machine is a kind of flat-plate clearance operation filtration equipment. Materials are fed into the drum the feeding tube on sealed enclosure, under the centrifugal force field, the liquid phase discharged through the filter media machine while solid-phase materials are trapped in the drum, and then opened the lid to discharge from the top after the machine stops. The case, including lid can be manually or electrically turned over 90°degree, thereby exposing the entire drum part. It's easy to unload, clean and replace filter media and do other operations. Stainless steel parts of the machine are all polished, and there is no blind angle therefore it's easy to clean and effectively prevent accumulation of residue. In addition, since centrifuge drum is mounted directly on the motor shaft without clutch, V-belt, mechanical brake components, especially applicable to inflammable, explosive, poisonous occasions.
Main MaterialFeatures
1.The parts contacted with material are all stainless steel,with good erosion-proof quality
2.The surface of the main accessaries of equipments are polished accurately, there is no angel in inner structure,which can clean easily
3.The shell cover can be turned over more than 90 the drum can be exposed wholely, the bottom of drum can be touched,which can make cleaning and exchange filter cloth conveniently
4.Sealed belt lid,motor lid, changing nozzle of setting gas are adopted by the parts of transmission which can avoid powder pollution rising from belts rubbing.
Application
Widely used in pharmacy, light industry, food and chemical sectors, including the fine-grained solid phase suspension separation and dehydration. Such as food additives, chemical seasonings, sodium glutamate, pesticides, antibiotics, pharmaceutical intermediates, vitamins, Chinese medicine, activated carbon, dyes intermediates, pigments and so on.

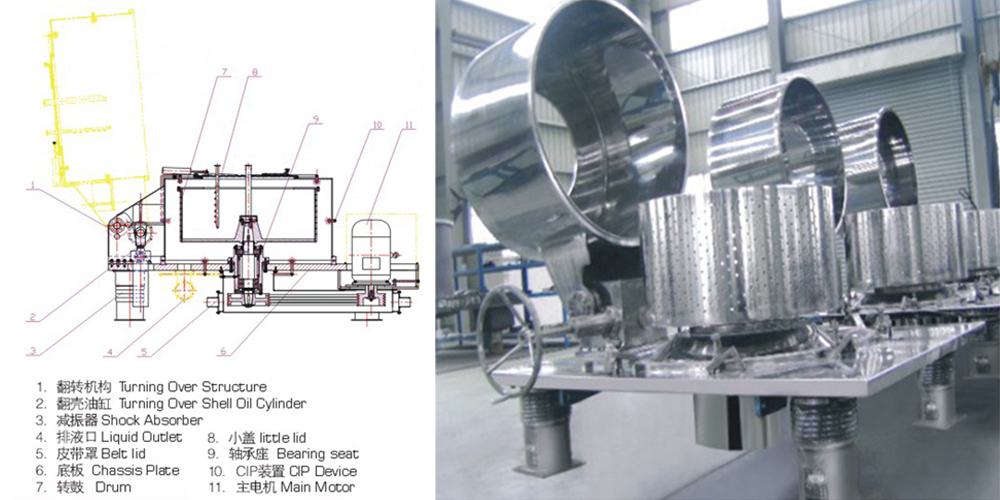

Structure Choice
1.Turning over shell adopts artificial shake reducer to turn over or driven by hydraulic pressure oil cylinder
2.Shock absorber is made of stainless steel
3.Sinter plate importer are adopted by filter media
4.It is equipped with ClP device
5.Small shell is designed on the top of the shell cover
Guarantee
Peony Centrifuge has been dedicated to producing machinery and equipment and carrying out facility construction, pursuing the best quality, and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith. We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
