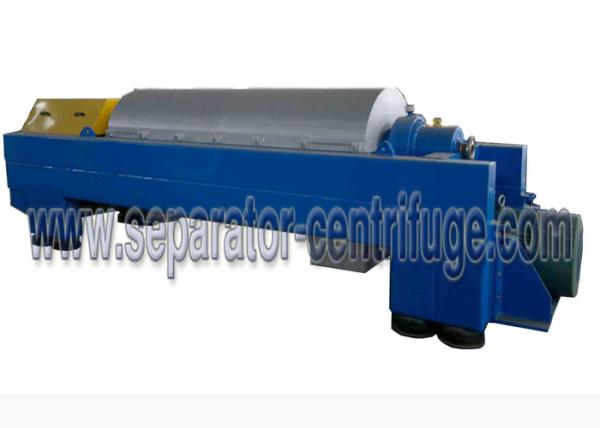

New Large Capacity Continuous Separating Decanter Centrifuges for Dewatering

Name: New Large Capacity Continuous Separating Decanter Centrifuges for Dewatering
Brand: Peony
Price: 20000 USD

New Large Capacity Continuous Separating Decanter Centrifuges for Dewatering Manufactures

Place of Origin : China

Brand Name : Peony

Certification : ISO9001& ISO14001

Model Number : PDC,PNX

Application : Sludge Dewatering

Motor brand : ABB,SIEMENS, Chinese famous brand

Bearing : SKF

Length-dia-ration : more than 4

Conveyor : tungsten carbide

Control PLC system : with or without

MOQ : 1 set

Packaging Details : Standard export package, polywood, fumigated wood, filmed

Delivery Time : 60-75days after receiving the down payment

Payment Terms : TT,.LC, Western Union

Supply Ability : 60 sets per month

Price : USD20000~125000/SET FOB Shanghai

Wet parts material : SS, DSS as optional

Control box : With

Contact Now

New Large Capacity Continuous Separating Decanter Centrifuges for Dewatering

Brief Introduction

Peony decanter centrifuge is the mechanical equipment used for continuously separating the materials in the suspension with density difference, by the principle of centrifugal setting.

Basic principle

The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding up, enters the drum; under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuous feeding, separating, dehydrating and discharging under full-speed running.

Features

compact structure
continuous operation
smooth running
strong adaptability to the separation material
large handling capacity
convenient maintenance

Specifications

Model	Drum				G-force	Capacity (m3/h)	Max solid discharge (m3/h)	Power (kw)	Weight (kg)	Overall size (L×W×H) (mmxmmxmm)
Model	Dia (mm)	Speed (rpm)	Length (mm)	Length-to-diameter rate	G-force	Capacity (m3/h)	Max solid discharge (m3/h)	Power (kw)	Weight (kg)	Overall size (L×W×H) (mmxmmxmm)
PDC-10	250	5400	1000	4	4080	0.5~5	0.4	11/4	1000	2410 × 800 × 1080
PDC-12-4	300	4200	1200	4	3500	1~5	0.6	11/4	1200	2610 × 800 × 1080
PDC-12-4.5	300	4200	1350	4.5	3000	1~10	0.8	11/4	1400	2760 × 800 × 1080
PDC-14	355	4000	1600	4.5	3180	1~20	1.2	18.5/7.5	1800	3495 × 840 × 1180
PDC-16	400	3650	1800	4.5	3000	2~25	2	22/7.5	2500	3890 × 1020 × 1205
PDC-17	420	3300	1680	4	2550	2~25	2	30/11	3610	4050X1270X1100
PNX414	355	4000	860	2.42	3175	1~10	0.8	18.5/7.5	2035	2765X741X1540
PNX418	355	4000	1460	4.11	3175	3~10	1.5	22/7.5	2222	3365X920X1060

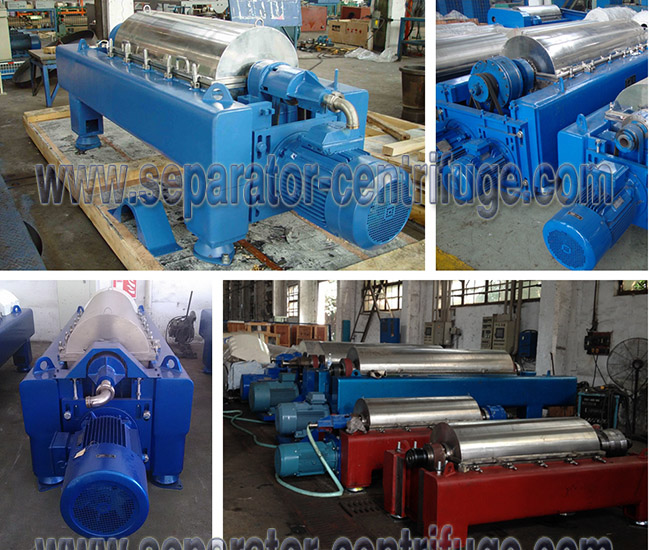

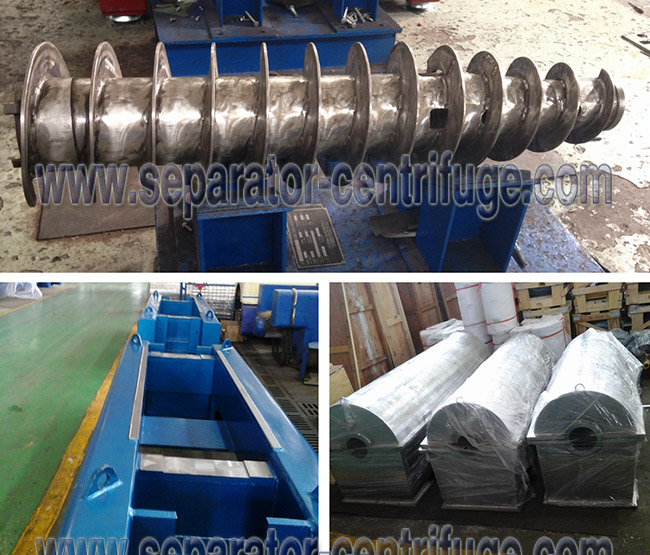

More pictures

New Large Capacity Continuous Separating Decanter Centrifuges for Dewatering

Guarantee

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
