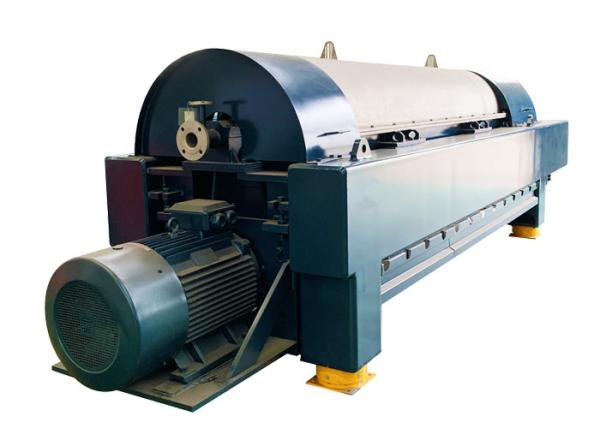

Horizontal Separating Crude Palm Oil Decanter Centrifuge For Beverage Technology

Name: Horizontal Separating Crude Palm Oil Decanter Centrifuge For Beverage Technology
Brand: Peony
Price: 1 USD

Horizontal Separating Crude Palm Oil Decanter Centrifuge For Beverage Technology Manufactures

Place of Origin : China

Brand Name : Peony

Certification : ISO9001&ISO14001,CE

Model Number : PDC-W

MOQ : 1

Packaging Details : Standard wooden case

Delivery Time : 60-75days

Payment Terms : T/T, L/C

Supply Ability : 60sets per month

Description : Crude Palm Oil Decanter Centrifuge

Structure : NX

MOC : SS304, SS316

Speed : Inverter control

Bearing : SKF

Discharging type : Partial discharge, self-cleaning

Motor : 2

Electrical components : World famous brand

Operation : Continuous

Separation phase : Two phase

Contact Now

Description

Palm oil is popular in demand throughout the world. It plays a very important role in the food industry The valuable oil has also adopted in the production of soap,candles, cosmetics,biodiesel etc.Palm oil is obtained from the fruit of the palm fruits.the main producer countries are Malaysia,Indonesia,Columbia and Africa countries with tropical climate.The oil is processed whole the year and they are in non stop operations.

Horizontal Separating Crude Palm Oil Decanter Centrifuge For Beverage Technology

Competitive Advantages

High rotation speed,high G force,big length -diameter ratio.
Big capacity
Low vibration,low noises strong afford capacity
Single operation and control
Corrosion resistant an resistant key parts
Max product yield
Famous and reliable electrical components

Specifications

Model	Diameter(mm)	Bowl speed (rpm)	Length(mm)	G-force	Capacity(m3/h)	Main motor power(kw)	Weight(kg)
PDCS-17	420	3300	1680	2550	5~20	30	3610
PDCS-18	450	3300	2000	2739	4~50	30	3655
PDCS-20	500	3200	2000	2860	5~45	55	4213
PDCS-21	540	2800	2000	2366	5~50	45	5290

PS: The above parameters will be subject to the final technical agreement.

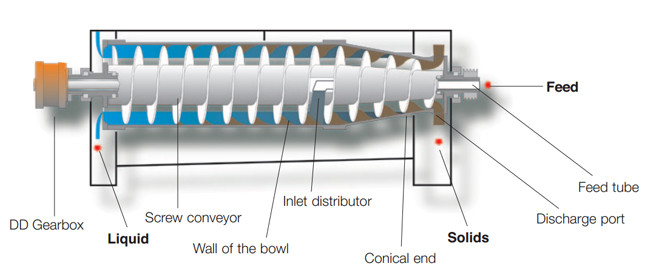

Separation principle

Palm oil decanter centrifuge is a horizontal separating decanter with a cylindrical-conical solid wall bowl for the continuous separation of solid and liquid.

The solid-wall bowl has a cylindrical section for efficient separation and clarification of the liquid. The product enters the decanter through the feed tube and passes through the distributor into the centrifugation space. The liquid level in the bowl is adjustable via regulating plates.

Due to the centrifugal forces, the solid particles are forced to the bowl wall and are transported by the decanter scroll to the solids outlet.The liquids are separated in the separation zone And discharge

1. Feeding pipe 2. Screw conveyor 3. Drum 4. Casing 5. Gear box

Horizontal Separating Crude Palm Oil Decanter Centrifuge For Beverage Technology

Applications

Beverage technology
Dairy technology
Oil and facts processing
Chemicals,pharmaceuticals biotechnology and mineral processing
Oils and fats recovery
Starch technology
Oilfield
Environmental waste water treatmen

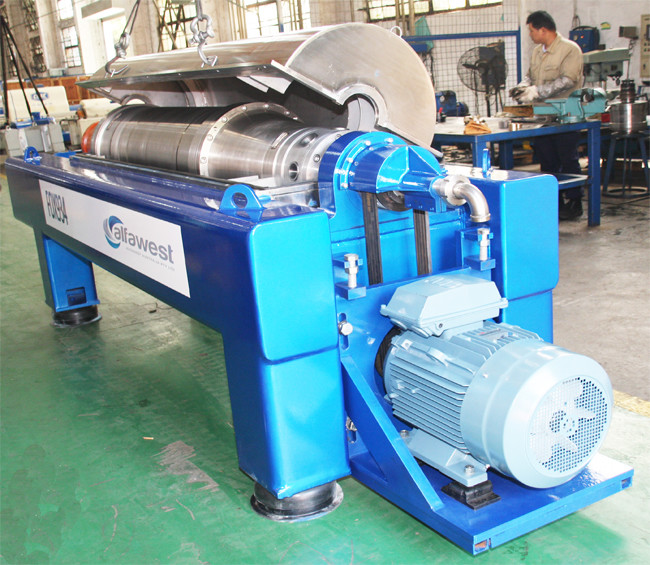

Pictures

Horizontal Separating Crude Palm Oil Decanter Centrifuge For Beverage Technology
